SKU
HI90060x

Photometric Electrodes

50.043,09 din.
Na lageru

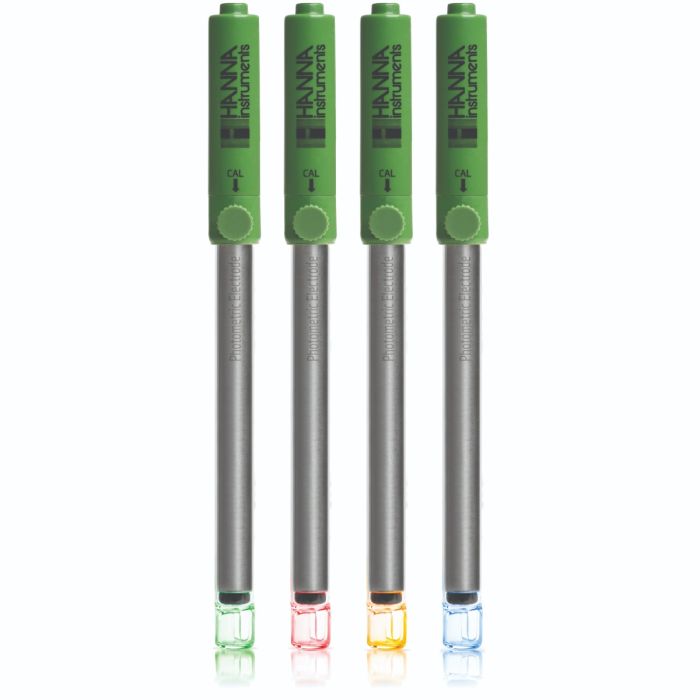

For many titrations, a potentiometric determination of the equivalence point is simply not possible. In these cases, the use of a photometric probe for the optical determination of an endpoint during volumetric analysis is preferred. Hanna Instruments introduces HI90060x Series for when a color change is still the best solution.

  • 4 different wavelengths

  • Less maintenance

  • Ideal for colorimetric reactions

photometric-electrodes-wave-order



Across the Spectrum

Adding to our titration line, these probes are available in 4 different wavelengths from 470 nm to 625 nm. The HI90060X family of photometric probes use the principle of absorbance at a specific wavelength to identify the equivalence point of a titration with the use of a color indicator.

Specialized Construction

A glass construction minimizes chemical compatibility issues. The stainless steel shield within the glass blocks out ambient light and protects against any grounding loop current that may result in progressive damage of the probe.

Made to Fit

With a 12 mm diameter and 120 mm standard insertion length, these photometric electrodes fit easily into electrode holders. These probes have a universal BNC connector that is used as a potentiometric input on Hanna titrators and autosamplers.



hi900604-photometric-electrode-titrator-holder



Reflective Measurement

Each probe has a LED at a specific wavelength that shines light through the sample and is reflected back by a platinum mirror sealed in the glass. The reflective measurement has a fixed path length and allows for high color sensitivity in a compact design.

Less Maintenance

With the photometric probe there is no fill solution to change in order for it to be compatible with a non-aqueous sample and there is no pH sensor to foul.

For Colorimetric Reactions

The use of a photometric probe for potentiometric titration can be used for a variety of complexometric titrations. The photometric probe is also ideal for non-aqueous titrations.



Specifications

sku

HI90060x

mV Range

10 to 1100 mV

Wavelength / LED color

HI900601 @ 525 nm / green LED
HI900602 @ 625 nm / red LED
HI900603 @ 590 nm / yellow LED
HI900604 @ 470 nm / blue LED

Light Source

LED

Measuring Cycle

LED pulsed at 1 kHz

Light Detector

silicon photocell

Sample Temperature

0 to 75°C (32 to 167°F)

Body Material

glass

Body Length / Overall Length

122 mm / 200mm

Outer Diameter

12 mm

Connection

BNC with 1.5 meter cable for connecting to titrator or autosampler

Power supply

ps/2 connector for connecting to titration system

Environment

0 to 50°C (32 to 122°F)

Ordering Information

Supplied with instruction manual and electrode quality testing certificate.
