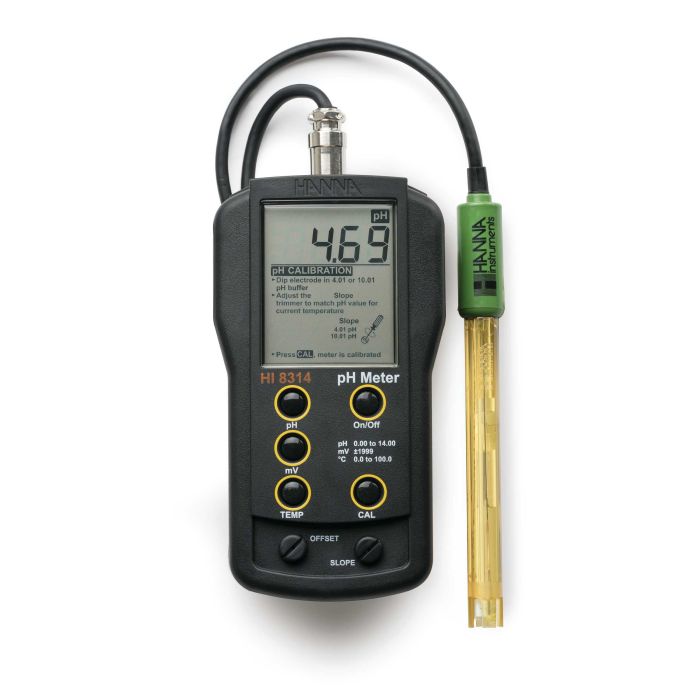

Analog pH meter - HI8314-1
- Automatic Temperature Compensation (ATC)
- Two-point Calibration
- Compact, heavy-duty, and waterproof protected casing
Details
Manual calibration is performed at one or two points by adjusting the trimmers on the front panel. Capable of measuring pH/mV and °C, this meter are great for field work, providing one meter for multiple uses. This instrument is ideal for applications that require a custom calibration point. Manual calibration can be extremely useful in order to achieve better accuracy. This meter can also be used for ORP measurements with the optional probes below: HI3618D or HI4619D
Specifications
|
sku |
HI83141 |
|
pH Range |
0.00 to 14.00 pH |
|
pH Resolution |
0.01 pH |
|
pH Accuracy (@25°C/77°F) |
±0.01 pH |
|
ORP Range |
±1999 mV |
|
ORP Resolution |
1 mV |
|
ORP Accuracy (@25°C/77°F) |
±1 mV |
|
Temperature Range |
0.0 to 100.0°C; 32.0 to 212.0°F |
|
Temperature Resolution |
0.1 °C (0.1 °F) |
|
Temperature Accuracy (@25°C/77°F) |
±0.4 °C; ±0.8 °F (excluding probe error) |
|
Temperature Compensation |
automatic, 0 to 70°C (32 to 158 °F) |
|
Calibration |
manual, two-point, via trimmers |
|
Power Supply |
9V batteries |
|
Power Consumption |
approximately 100 hours of continuous use |
|
Environment |
0 to 50°C (32 to 122°F); RH max 100% |
|
Dimensions |
145 x 80 x 36 mm (5.7 x 3.1 x 1.4’’) |
|
Weight |
230 g (8.1 oz.) |
|
Ordering Information |
HI83141 is supplied with HI1230B pH electrode and HI7669AW temperature probe, HI70004 pH 4.01 buffer solution sachet, HI70007 pH 7.01 buffer solution sachet, HI700601 electrode cleaning solution sachets (2), calibration screwdriver, battery, protective case and instructions. |
|
Warranty |
2 years |
|
Recommended Probe |
HI1230B PEI body pH electrode with BNC connector and 1 m (3.3’) cable (included); HI7669AW stainless steel temperature probe, BNC connector (included) |
